Truck Loading Platform Mobile Dock Lift
Truck Loading Platform Mobile Dock Lift
This lift is easy and convenient to be operated by electric control box and handheld control.
It is the perfect option for small size materials loading and unloading as well as limited worksites.
Features:
---• User-friendly wire-controlled handle
---• AC 110V/220V/380V Electric hydraulic motor

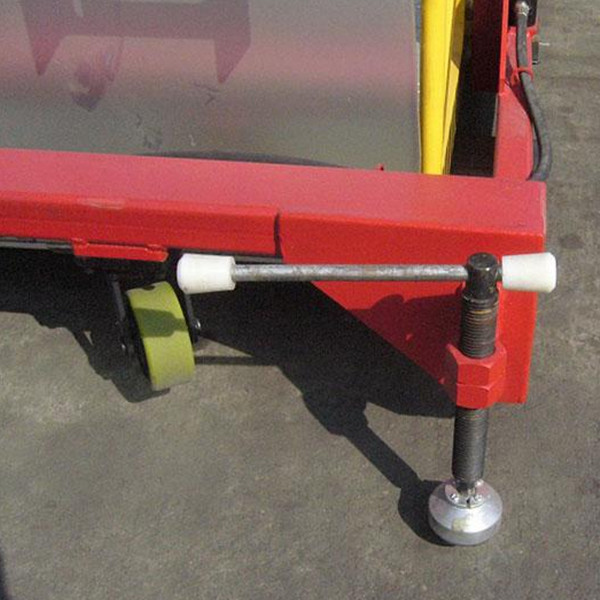

---• Adjustable support screws for extra safety

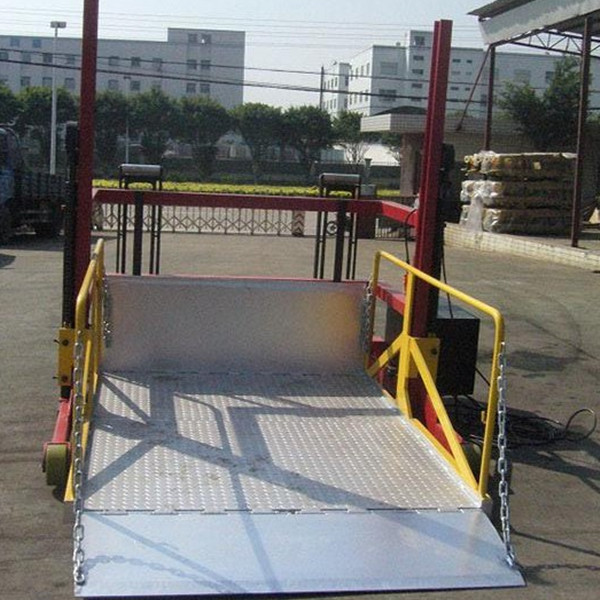

---• Antiskid steel checkered plate platform
---• Foldable front / rear lips

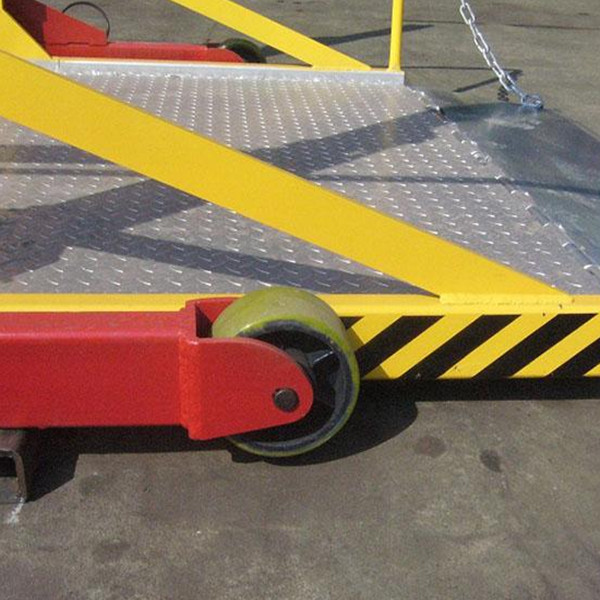

---• Heavy-duty Poly-on-Steel wheels
---• Controllable lowering speed
---• Double anti-rust primer before painting for protection
Specifications:
Model | SJX1 | SJX1.5 | SJX2 |
Loading capacity | 1000kgs | 1500kgs | 2000kgs |
Lift height | 1700mm | 1700mm | 1700mm |
Self height | 60mm | 60mm | 60mm |
Platform size | 1800x1500mm | 1800x1500mm | 1800x1500mm |
Lip length | 550mm | 550mm | 550mm |
Power supply | AC 380V | AC 380V | AC 380V |
Net weight | 950kgs | 1100kgs | 1350kgs |
