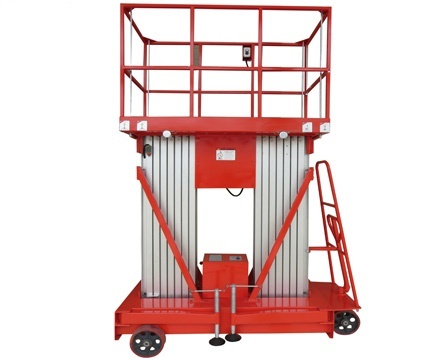

10m electric aluminum alloy lift platform
10m electric aluminum alloy lift platform
Electric aluminum alloy lift platform is characterized by light weight,
compact size and easy to move for sale.
Aluminum alloy material adopted enable one worker move the vertical lift freely
to enter into narrow door or elevator smoothly.
This unit can be used in hotel, airport, theatre or museum.
Non-trace universal polyurethane wheels used will be no damage to ground floor.
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
Electric aluminum alloy lift platform is characterized by light weight,
compact size and easy to move for sale.
Aluminum alloy material adopted enable one worker move the vertical lift freely
to enter into narrow door or elevator smoothly.
This unit can be used in hotel, airport, theatre or museum.
Non-trace universal polyurethane wheels used will be no damage to ground floor.
|
Model |
SJL0.2-10 |
|
Capacity |
200kg |
|
Max. Occupants |
2 |
|
Max. working height |
12.00m |
|
Platform height |
10.00m |
|
Platform size |
1.45x0.60m |
|
Overall length |
1.90m |
|
Overall width |
0.80m |
|
Overall height |
1.98m |
|
Lifting motor |
1.5kw |
|
Weight |
730kg |
|
Overall size |
1.90x0.80x1.980m |
1. Travel switch: The lifter will stop automatically when touch it.
2. Control panel: control button on platform; control box on ground, which enable user operate lift more freely.
3. Outrigger: guarantee stability of whole machine when work.
4. Hydraulic power unit: Lisheng brand, long time service life.
5. Aluminum alloy profile: make whole machine with light weight.
6. Double chains: Keep safe.
7. Locking key switch on control distributor
8. Auxiliary platform lowered device: User can push this button to make lift fall down when meet an emergency.
9. Polyurethane wheel: no damage to the ground floor, suitable for work indoor.
