self-propelled scissor lifts

self-propelled scissor lifts

self-propelled scissor lifts



Details

 Breif introduction

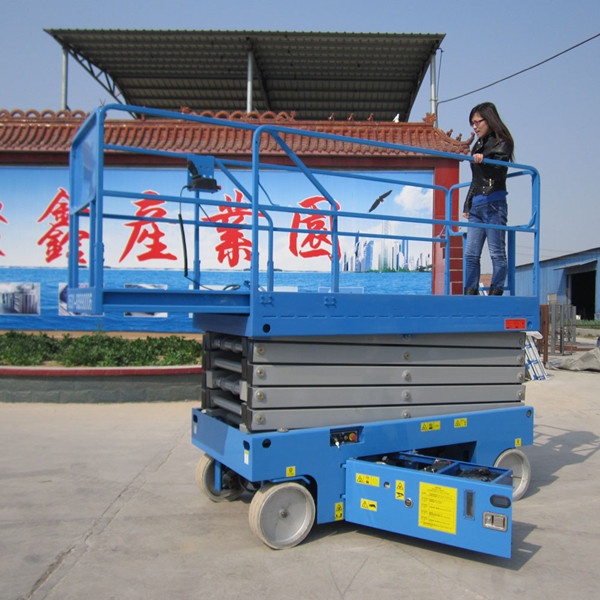

1. Hydraulic Self-propelled Scissor Lifts is the professional high-altitude operation equipment.

2. Its scissor mechanical structure makes the lifting platform lift more stably. Wide working platform and large loading capacity can make the work scope bigger.
   It’s suitable for several people working together.

3.Lifting height: 4m ,6m, 8m,10m ,11m and so on. And the max height of the scissor lift is 20m.

4. Loading capacity:300kg, 500kg, 800kg,1000kg and so on. The Max capacity could be 7000kg.

Control

1. Manual control and electric control

2. Electric control: There are two control systems(optional). One is hand button, which may be placed in any position on the table rail for the convenience of operation.
    The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.


Power

1. Electricity or diesel: local power available at the working sites(110V,220V,380V,415V), diesel engines and generators.

2. It can be equipped with manual hydraulic device, so when there is no power at the occsions or the power supply goes out, the lift can still work normally.



Safety

1. In special circumstance, the scissor lift can equip explosion-proof electric equipment.

2. The platform is equipped with antiskid plate to prevent slipping, it is enough safe when workers on the platform.

3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

4. The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure.
    You can open the manual dropped valve to lower the platform to the home position.


Services

We supply spare parts free for one year, and supply the technical supporting all the time.

Application

They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters , exhibition halls and other places,
It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses.
